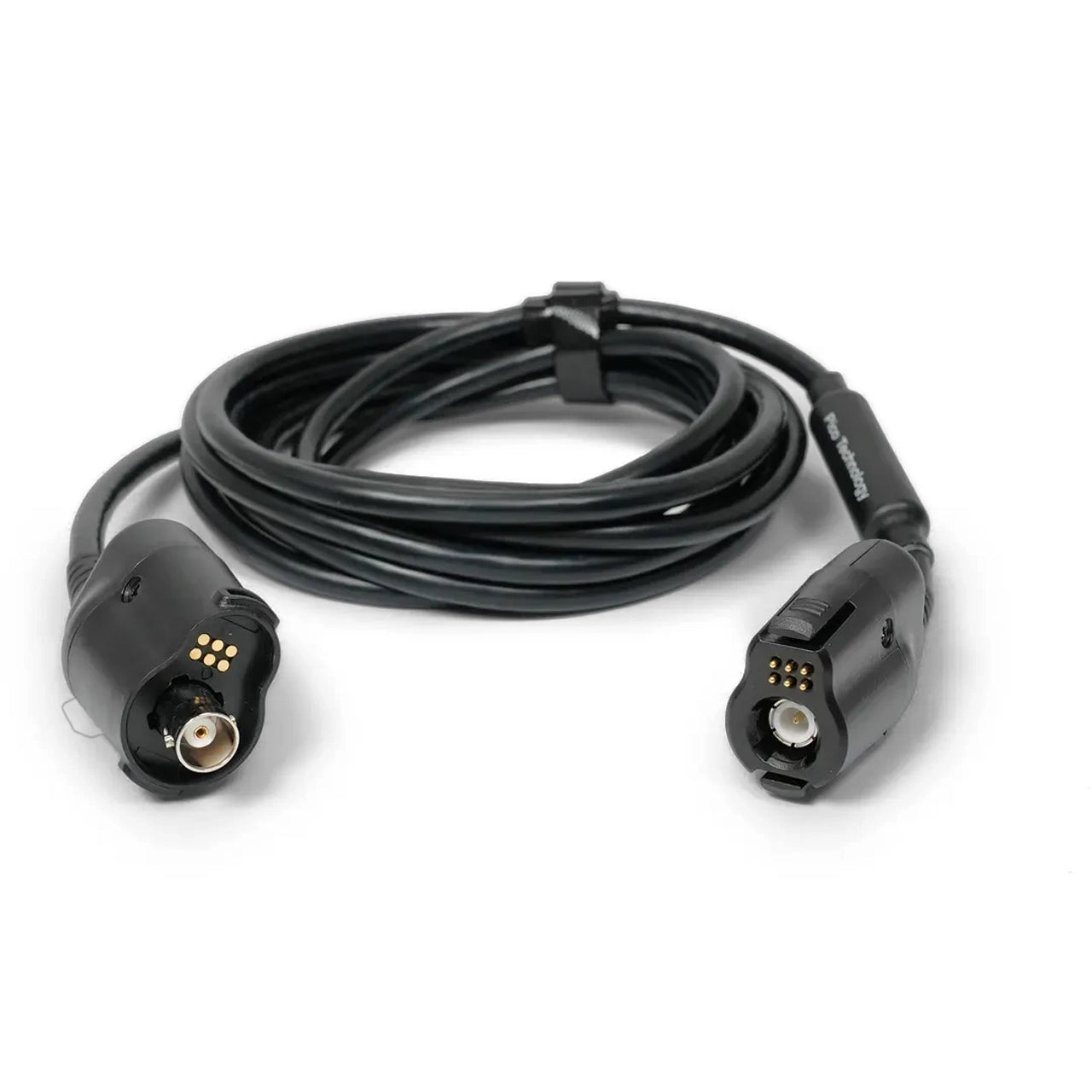

PicoBNC+ Extension Cable TA574

AES#: pt-TA574
(0)
In stock
$116.00

The PicoBNC+ Extension Cable provides the extra reach required for large-scale diagnostic scenarios. Measuring 3 meters in length, this robust cable gives technicians additional flexibility while performing tests at the rear of the vehicle, under the chassis, or deep within the engine bay.

Designed specifically for the next generation of PicoBNC+ tools, this lead maintains full digital communication between the probe and the scope.

  • Compatible with PicoBNC+x1 leads (TA404, TA405, TA406, TA407) at voltages up to 200 V (DC + AC peak), depending on signal bandwidth
  • Compatible with PicoBNC+ NVH probes
  • Compatible with PicoBNC+ current clamps
  • Operating temperature range of 0 to 70 °C
  • EN61010-1 compliant

More about Compatibility...

Although the TA574 is compatible with most Pico BNC+ probes it is not suitable for use with these Pico BNC+ probes:

  • because of additional capacitive loading it is not recommended for use with the 5-meter test leads (TA475, TA476, TA477, TA478) because of additional capacitive loading.
  • it is not recommended for use with passive attenuating test leads, such as the TA400, TA499 and TA506.
